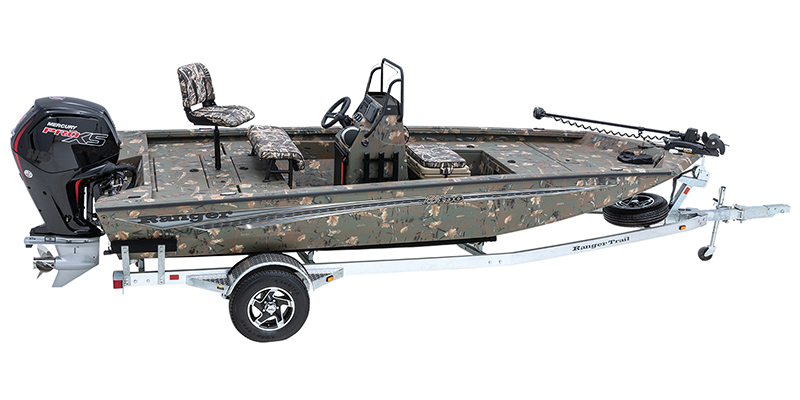

2023 Ranger® RB 190

Check Availability
Hi, my name is and I'm interested in this 2023 Ranger® RB 190 . I'm in the area and you can reach me at or by phone at .

Engine

  • Engine Brand Name:
    Fourstroke
  • Engine Type:
    In-Line
  • Cylinders:
    4
  • Engine Stroke:
    4-Stroke
  • Horsepower (bhp):
    90
  • Horsepower (kW):
    67
  • Cooling:
    Water (Open Loop)
  • Valves:
    8
  • Valves Per Cylinder:
    2
  • Valve Configuration:
    SOHC
  • Bore (mm):
    90
  • Bore (in):
    3.5
  • Stroke (mm):
    81
  • Stroke (in):
    3.2
  • Displacement (cc):
    2100
  • Displacement (ci):
    126
  • Starter:
    Electric
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Displacement (l):
    2.1
  • Engine Model Code:
    90ELPT
  • Engine Manufacturer:
    Mercury
  • Engine Trim:
    90HP ELPT
  • Full Throttle RPM Range Low:
    5000
  • Full Throttle RPM Range High:
    6000
  • Engine Dry Weight (lbs):
    359
  • Engine Dry Weight (Kg):
    163
  • Salt Water Capable:
    Yes
  • Engine Alert System Type:
    Visual / Audible
  • Emergency RPM Reduction:
    Yes
  • Number Of Engines:
    1
  • Engine Configuration:
    Outboard

Carburetion

  • Fuel Injector:
    Yes
  • Carburetion Type:
    Fuel Injected

Dimensions

  • Length (in):
    238
  • Length (mm):
    6000
  • Length (ft):
    19.83
  • Length (m):
    6
  • Length (ft/ft):
    19
  • Length (ft/in):
    10
  • Beam (in):
    96
  • Beam (m):
    2.3
  • Transom Height (mm):
    508
  • Transom Height (in):
    20

Other

  • Bilge System Type:
    Automatic Siphon
  • Number of Fishing Pedestal Chairs:
    2
  • Number Of Cockpit Chairs:
    3
  • Fuel Capacity (gal):
    21
  • Fuel Capacity (l):
    79.5
  • Number of Passengers:
    5
  • Weight Capacity (lbs):
    2950
  • Weight Capacity (kg):
    1338.1
  • Hull Material:
    Aluminum
  • Propulsion Type:
    Propeller
  • Gear Ratio(s):
    2.07:1
  • Cockpit Flooring Type:
    Aluminum
  • Total Fishbox Capacity (gal):
    25
  • Total Fishbox Capacity (l):
    106
  • Fishbox Pump:
    Yes
  • Trolling Motor Brand:
    Minn Kota®
  • Helm Seating Configuration:
    Bench
  • Number Of Helm Seats:
    2
  • Helm Roof Type:
    Open Top
  • Fuel Level Warning Type:
    Gauge
  • GPS Brand:
    Lowrance®
  • SysModelID:
    122755
  • Year:
    2023
  • Manufacturer:
    Ranger®
  • Model Name:
    RB
  • Trim Name:
    190
  • Family Name:
    RB
  • Product Type:
    Boats
  • Generic Type (Primary):
    Bass
  • Manufacturer Country:
    USA
  • Photo Name:
  • Major Revision Year:
    2017
  • Revision Status:
    Carryover
  • Competitor Code:
    BOA23BSE0000
  • Introduction Year:
    2017
  • SysTrimId:
    390384
  • SysMakeId:
    1332
  • IsCurrent:
    Yes
  • Historical ID:
    373107
  • Data Provider:
    CRS
  • Parent Company:
    Ranger Boats
  • Photo Name (Floorplan):
  • Photo Name (Floorplan 2):
  • Display Name:
    RB190
  • Min Recommended Horsepower (bhp):
    90
  • Min Recommended Horsepower (kW):
    67.2
  • Max Recommended Horsepower (bhp):
    115
  • Max Recommended Horsepower (kW):
    85.8
  • Currency:
    US Dollars
  • Basic Warranty (Months):
    12
  • Hull Warranty (Years):
    5
  • Engine Warranty (Months):
    36
  • Engine Warranty (Condition):
    Limited
  • Steering Assist System:
    Yes
  • Outboard Steering Control:
    Remote
  • Trim System Type:
    Power
  • Galley Table Configuration:
    No Galley Table
